X-ray

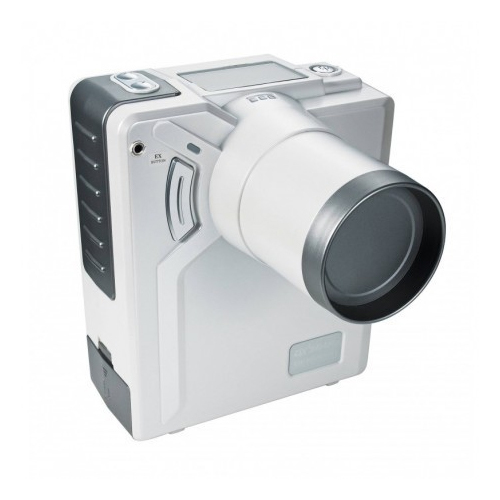

The DX3000 is equipped with cutting-edge battery technology, enabling it to capture up to 250 X-ray images on a single charge. This advanced feature allows for extended use, making it an ideal choice for busy medical professionals who require reliable and efficient equipment.

  • Pioneer Status : The foundation of Dexcowin's portable X-ray line.
  • Design : Extremely lightweight (as low as 1.8 kg or 4 lbs) and features an ergonomic, compact, camera-like style for ease of use. It often includes dual exposure buttons and a hand strap for secure, one-handed operation.
  • Primary Application : Originally focused on Dental (intraoral radiography), but is also used in Veterinary and Forensic fields.
Download Catalog Inquire Now
Tube Voltage 65KV/70KV (Variable)
Tube current 1.7mA/2.0mA (Fixed)
Focal spot 0.8mm
Target angle 20
Exposure 0.05 - 1.35sec (0.05 increments)
Power Supply 14.8V (Rechargeable battery)
Battery Capacity 2500 mAh
  • Mobility & Convenience : Ultimate Portability: Its lightweight and cordless design means every room can be an X-ray room. This eliminates the need for constructing separate, shielded X-ray rooms, saving time and construction costs. It is ideal for pediatric patients, special needs patients, and home-health use, as the practitioner can stay with the patient.
  • Battery Performance : High-Volume Imaging: Features a rechargeable Li-polymer battery, capable of capturing over 250 X-ray images on a single charge. Full charging takes approximately 1.5–2.0 hours.
  • Imaging : Precise Intraoral Imaging: Features a small focal spot (0.8mm) and an Aiming Light to ensure accurate X-ray positioning, which is critical for dental radiography.
  • User Interface : Equipped with a Graphic LCD/OLED display and an intuitive UI for setting exposure times for different anatomies (e.g., incisor or molar X-ray images).

Advance Radiation Safety

  • The system captures chest X-rays efficiently.
  • It ensures minimal radiation exposure to patients, operators and attendants.
  • Neck strap to prevent accidents.
  • 1/7 reduced radiation than other x-ray machines.
  • Lead wrapping the generator and cone.
  • Large 350 × 400 mm detector for imaging all body parts.
  • Minimum spatial resolution of 3.5 lp/mm or higher.

Highlights

  • Ensures both user & patient safety by reducing radiation exposure.
  • Radiation exposure time is adjustable, ensuring minimal exposure for any anatomy per ALARA guidelines.
  • The detector offers a high resolution of at least 2500 × 3000 pixels, a 140-micron pixel pitch, and 16-bit or higher A-to-D conversion.
  • It is robust, sealed, and certified for water resistance, dust resistance, and drop resistance (non-glass), ensuring durability and reliability.
  • Equipped with an X-ray beam limiting and centering system to minimize scatter radiation and ensure FOV centering.
