Photoniccs Lasers have been accepted as the latest advanced surgical tool. Known for their accuracy and efficiency, lasers provide safetreatments and instill a sense of confidence into the surgeons as well as the patients. The field of Otolaryngology has benefitted significantly from today's diode lasers.
Surgeons can confidently perform 100% bloodless surgeries with confidence. Photoniccs 15W Laser is perfect for ENT surgeries including nose, ear, neck, larynx and more. Earlier, CO2 lasers, Argon lasers and Nd:YAG lasers were widely used for ENT applications. Today, however, diode lasers have advanced significantly to offer all these benefits in a single package. In each and every characteristic, be it coagulation effect, absorption degree or tissue cutting; diode lasers offer more precision and efficiency compared to all these lasers.

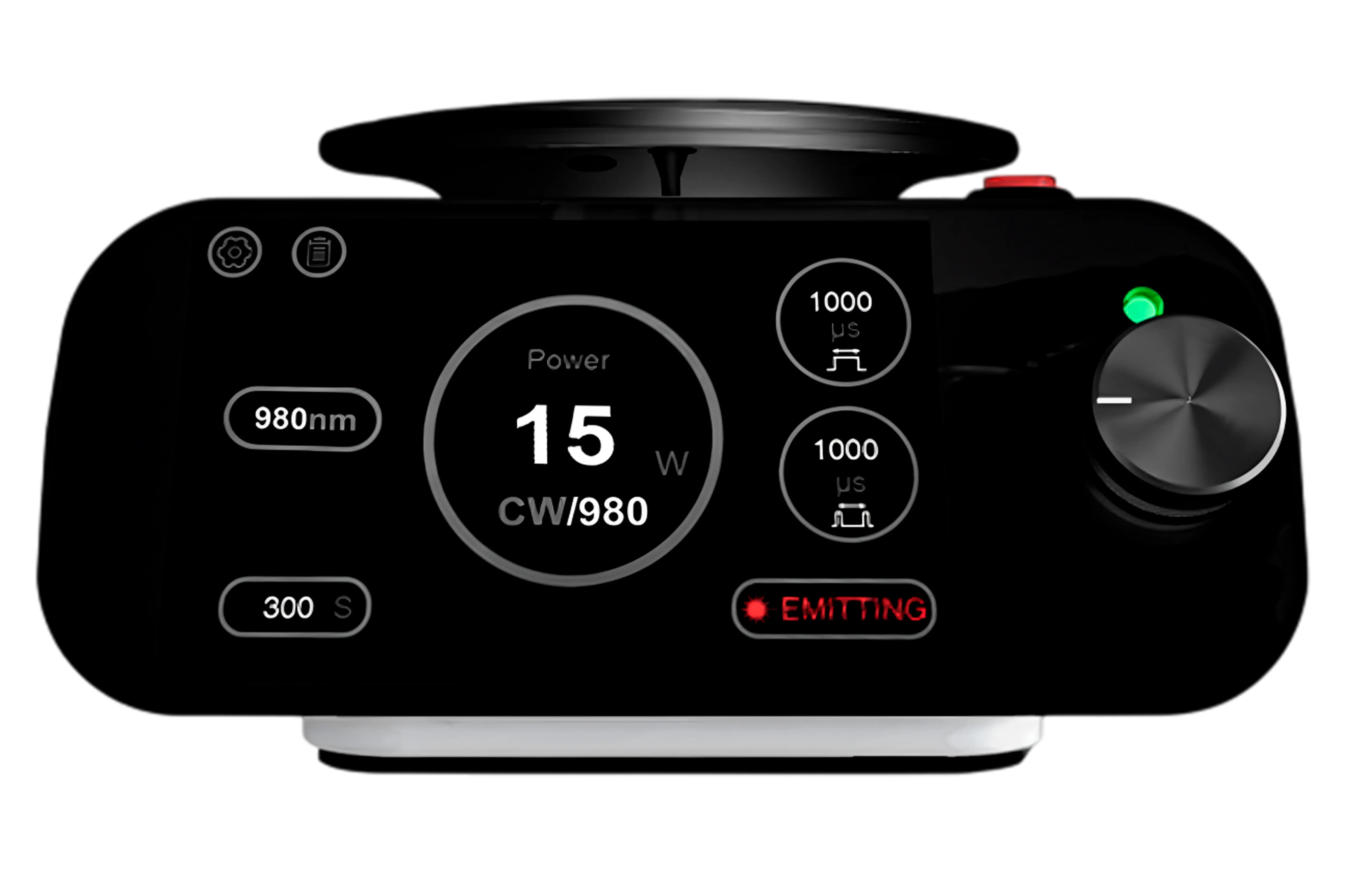

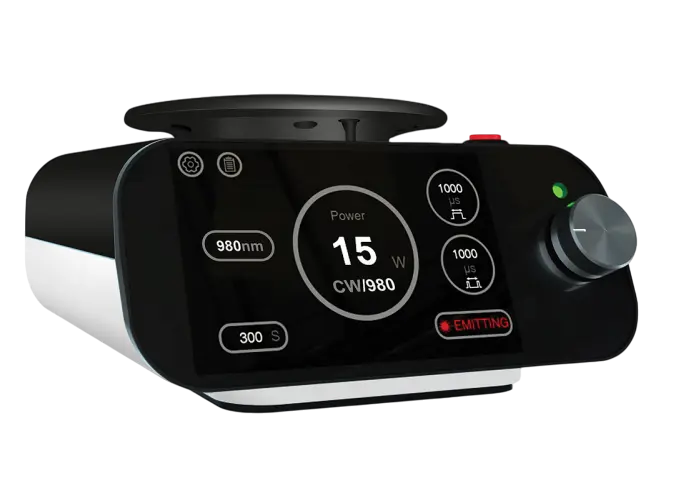

Photoniccs 15w/980nmis a lightweight and portable 980nm wavelength Diode laser with a fiber optic delivery system offering affordable and efficient surgical procedures.

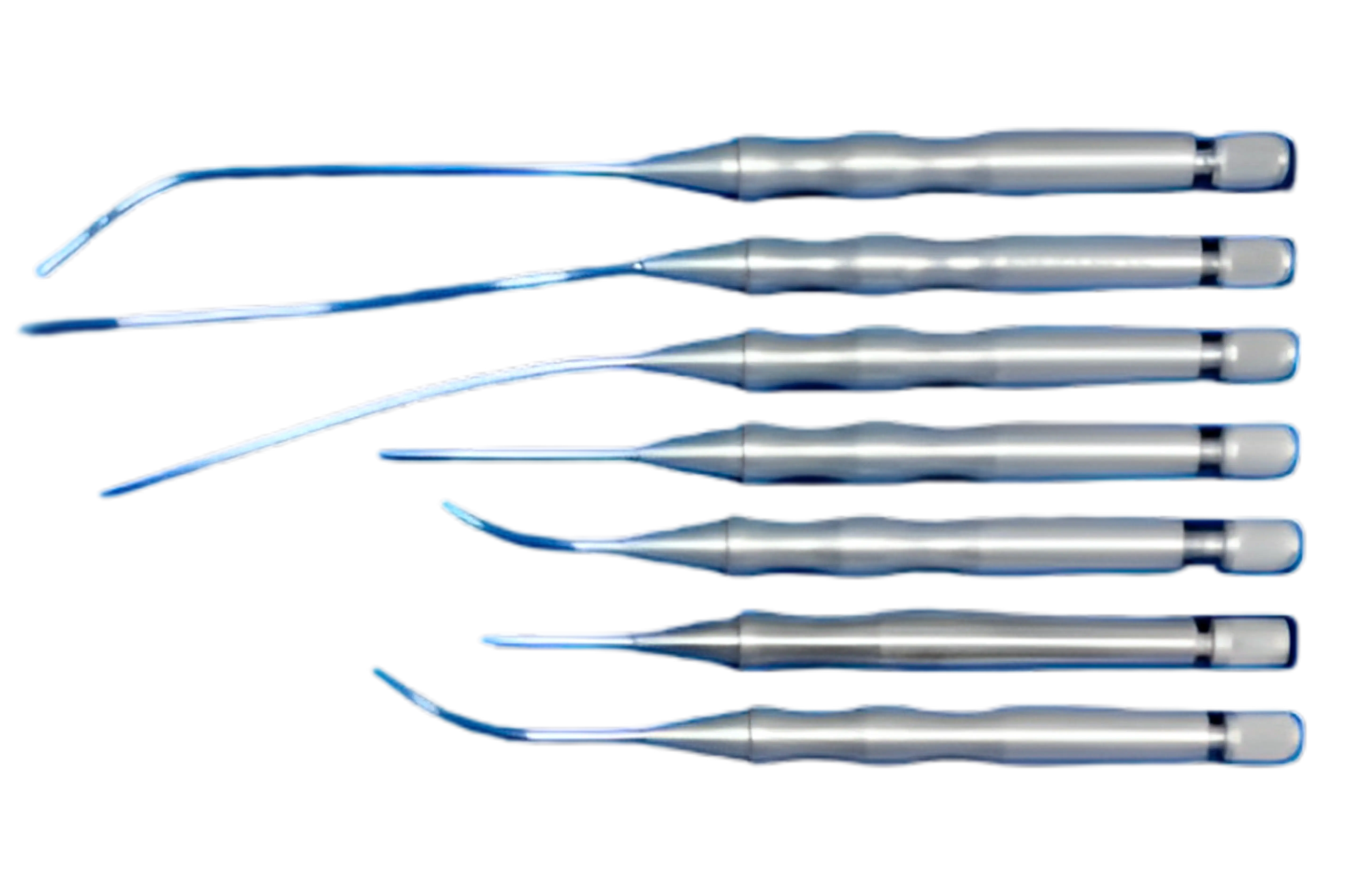

Photoniccs 15w/980nm is ideal for contact mode surgeries where laser fiber tip is in direct touch with the targeted tissue. This mode is preferred for vaporization of tissue and photo-coagulation. The lower power settings help achieve coagulation while the higher power bands help undertake vaporization. In non-contact mode, the tip of the laser fiber remains at a distance from the tissue. This mode is ideal for tissue photo coagulation.
| Laser Type | Diode, Semiconductor |
|---|---|
| Wavelength | 980nm |
| Max Power | 15 watts |
| Aiming Beam | 635nm, < 5mw |
| Operation Mode | Continuous or Pulsed |
| Pulsed Time | 0.05ms~1000ms |
| Beam Delivery | SMA905 connector |
| Optic Fiber Compatibility | Optic fibers having a core from 200μm to 1000μm, NA=0.22~0.48 |
| Beam Emission Initiation | Footswitch |
| Controller | Microprocessor |

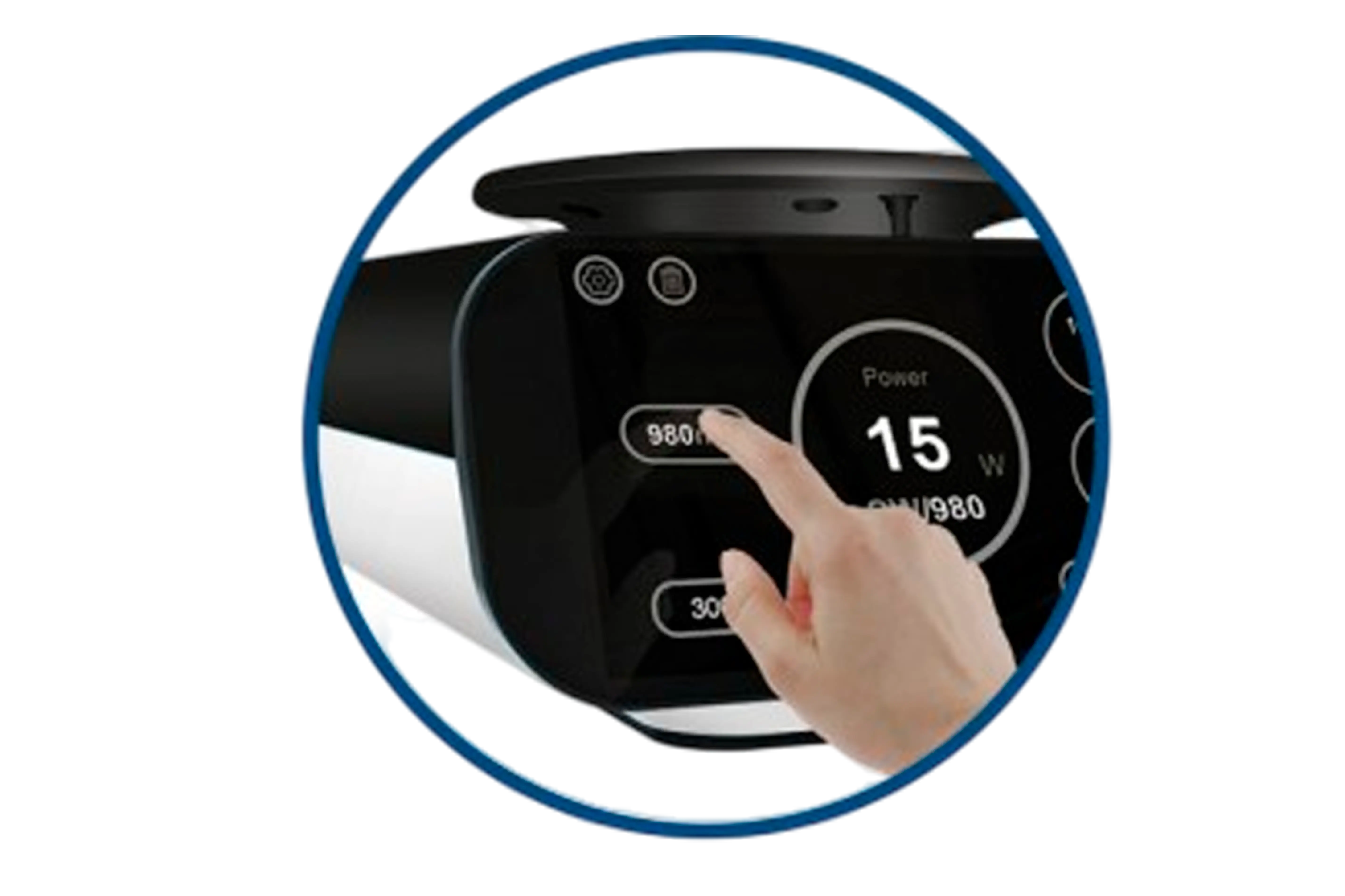

| Display | 5.5” LCD with touch panel, Medical approved |
| Cooling | Silent cooling fan, Multi-channel copper tube electronic cooling |
| Power Supply (Laser) | DC 24V/8.33A from the separate AC |
| Power Supply (AC Adapter) | Single phase 100~240V, 50-60Hz, Max 90W |
| AC Adapter | DC 24V/8.33A, Medical approved |
| Laser Dimensions | 20cm × 20cm × 10cm (L×W×H) |
| Laser Weight | 1.7 kg |
| Laser Case Dimensions | 19cm × 13.4cm × 9cm |
| Weight with Case | 9 kg |
| Working Environment | +10 to 24°C, 30% to 60% humidity |
| Medical Device Class | IIB |
| Laser Safety Class | 4 |
| Electric Safety Class | I type B |
| Housing Protection Degree | IP20b |
| Footswitch Protection Degree | IPX6 |
| Battery Capacity | 3350 mAh |
