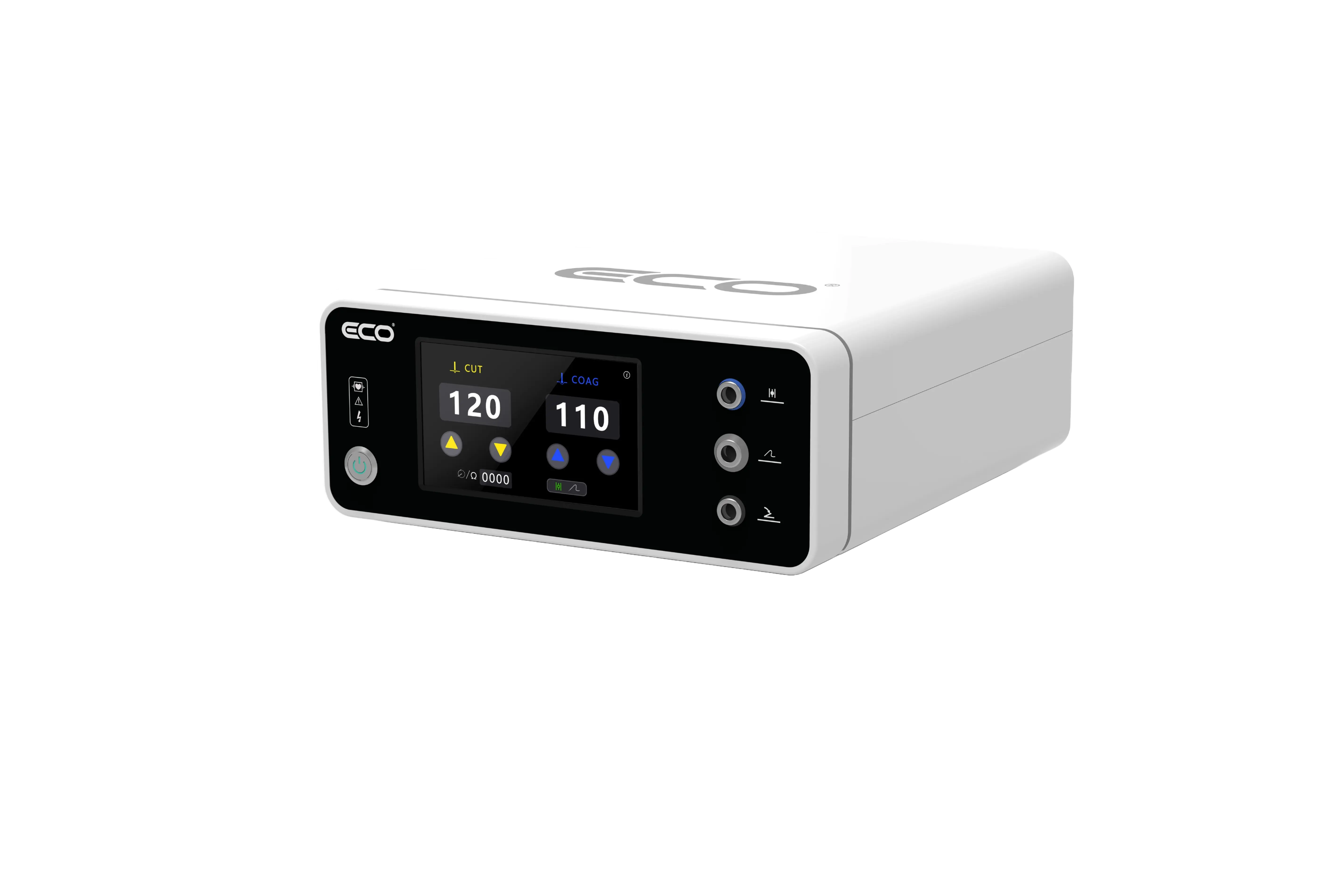

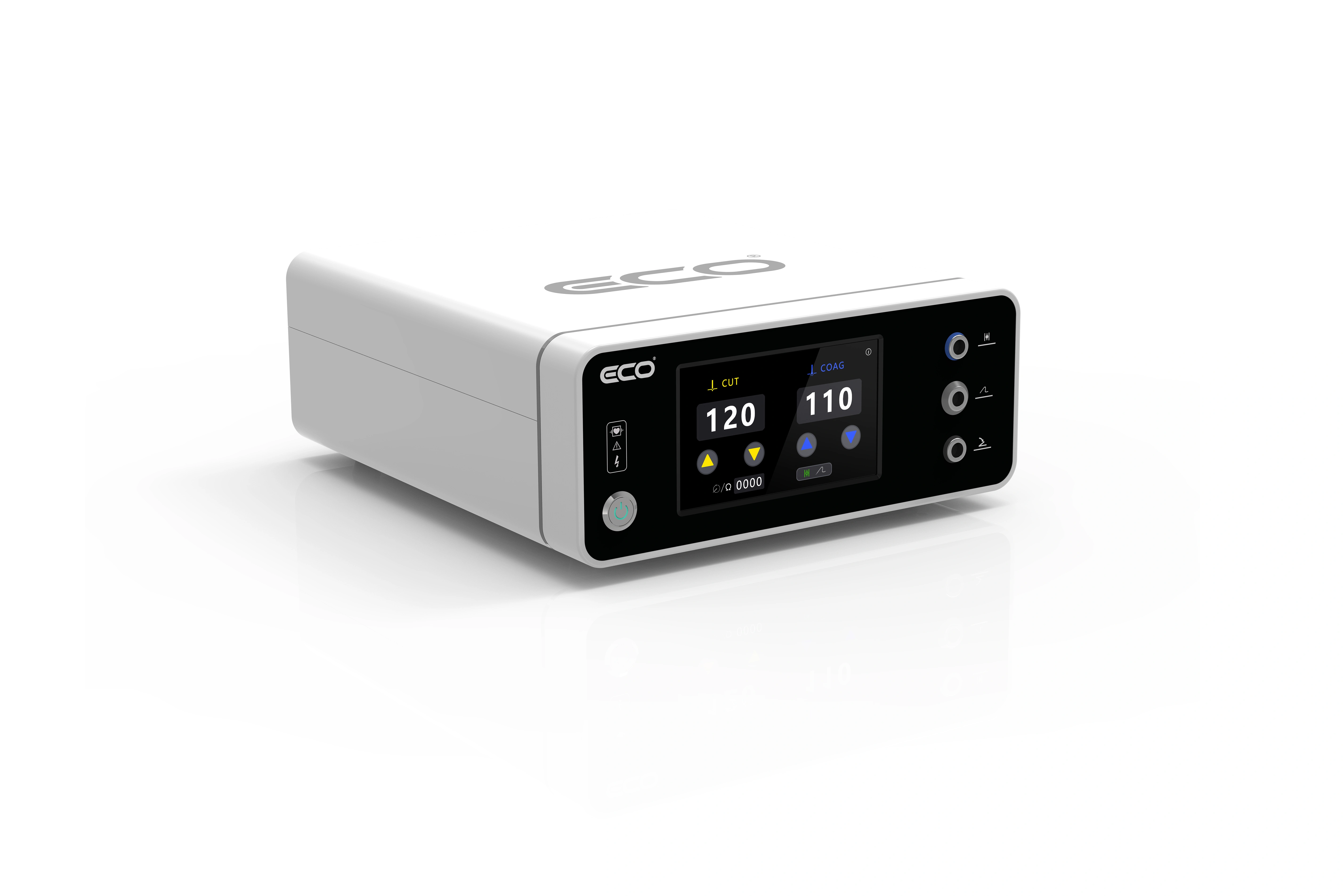

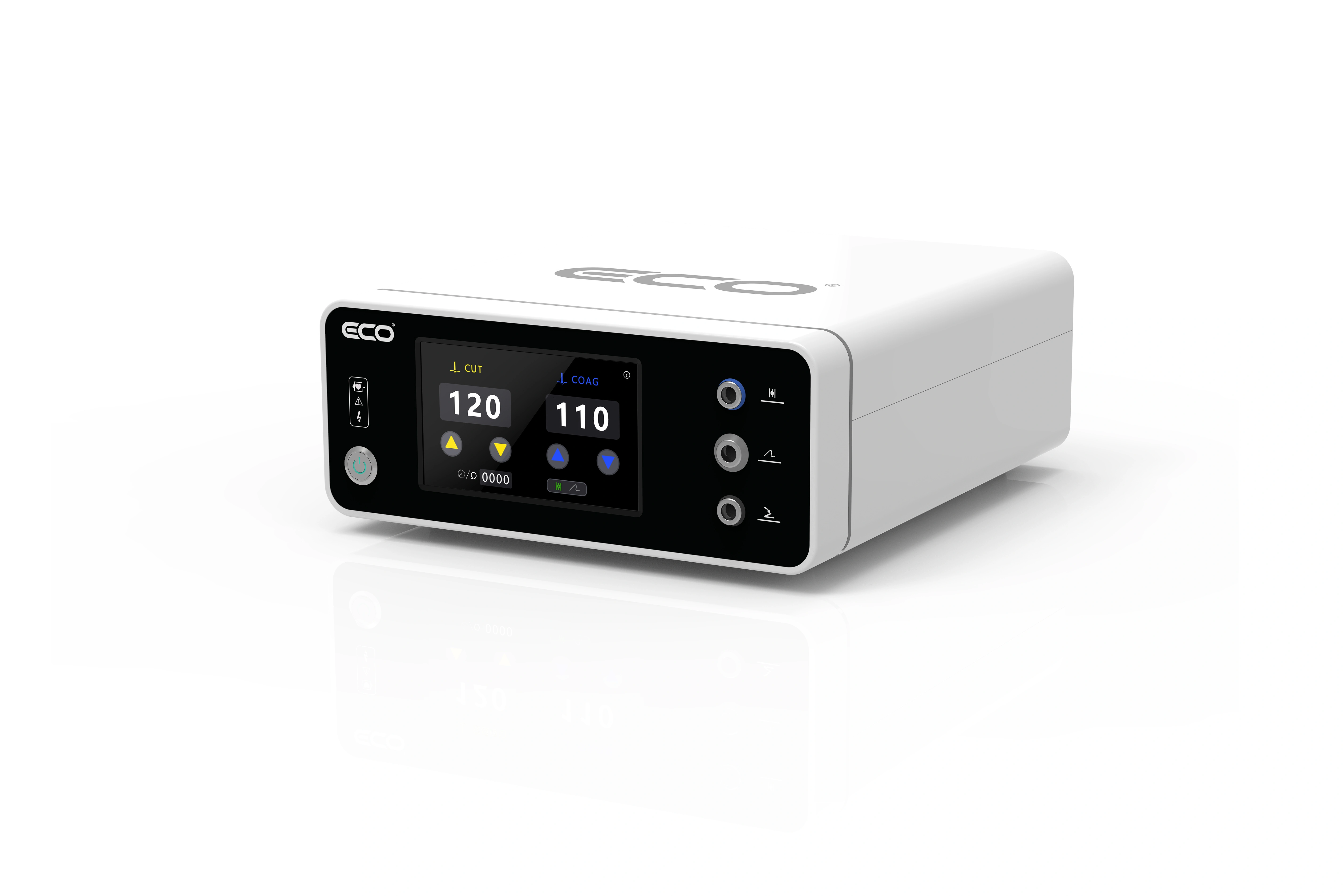

ECO ENT RF Plasma Surgical System ECO-800CI (ECO-802A) - For ENT

Low Temperature, Less Damage, Painless Coagulation

Under the low frequency electric field of 100kHz, a plasma thin layer with a thickness of about 100 µm is formed around the electrode by normal saline. The plasma thin layer is composed of high-energy ions. These particles have enough kinetic energy to break the organic molecular bonds of the target tissue and make it vaporized and cracked into gas.

The low-temperature plasma technology of ECO can realize the functions of tissue cutting, ablation and coagulation at a low temperature of 40-70°C, which can effectively avoid the defects of high temperature, deep damage, large amount of bleeding, and negative plate sticking.

Download Brochure
dental-laser

Specifications

Type Description
Product contains Proctoscope with Obturator, Fibre optic light candle, CD containing Instruction of Use
Proctoscope Material Polycarbonate- Hard Plastic
Proctoscope Diameter Inner= 3.8 cm. Outer= 4 m
Proctoscope Window Dimensions Length 15 cm. Width= 3.5 cm
Obturator Diameter 3.6 cm
Sterlization methods Ethylene oxide (EtO) / Formalin chamber /CIDEX

ECO ENT Plasma

Hemorrhoids
Name Description
Imput Voltage 100-240V, 50/60Hz
Working Frequency 100KHz + 10%
Output Power Ablation cutting ≤ 350W Coagulation ≤150W

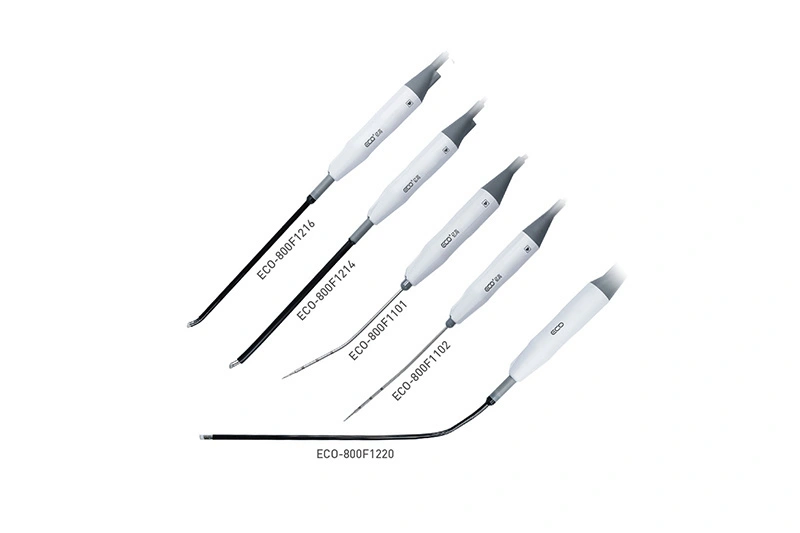

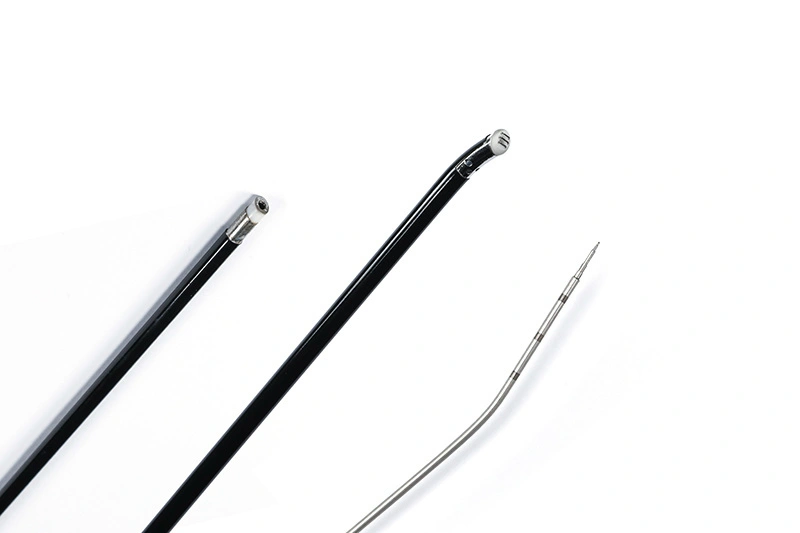

Advantage of ECO Plasma Eletrodes

Various types of electrodes and wide range of applications
  • Three stages of active tips are integrated for cutting, ablation, and coagulation. The first and second stages can be used for cutting and ablation, and all three stages can be used for coagulation.
  • Electrodes are mainly used in nasal treatments, such as the removal of tonsil and adenoid, UPPP, and CAUP. The active tips of the electrodes are made of platinum materials for sharper cutting.
  • Electrodes are mainly used in the cutting of laryngeal papillomas and laryngeal growths. The small-diameter and ultra-long electrode design can make the intraoperative vision clearer and the operation site more in-depth.

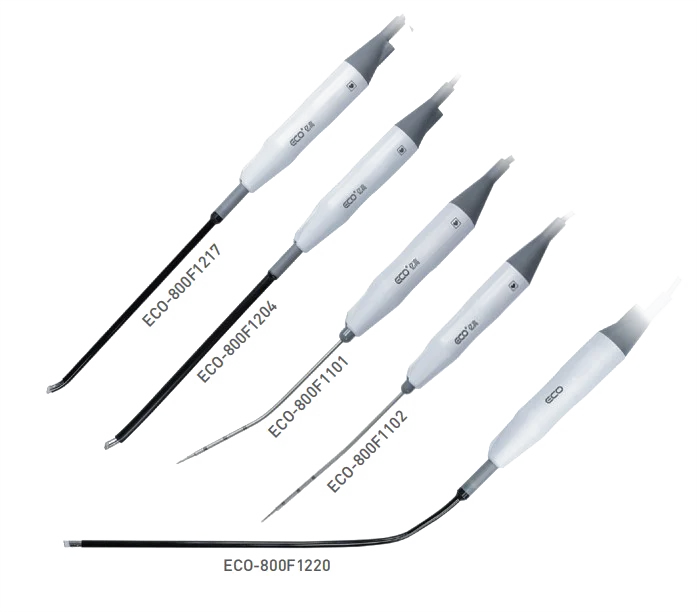

Model No. Clinical Use
ECO-800F1101 Turbinate ablation
ECO-800F1102 Turbinate ablation
ECO-800F1208 Tonsillectomy,Adenoidectomy
FCO-800F1201 Tonsillectomy, Adenoidectomy
ECO-800F1220 Laryngeal lesion ablation
